A True Autonomous Robot
Without Additional Infrastructure
NarGo
NarGo Outline
Flexible Autonomous Driving in Any Environment
* Available on selected models only
Infrastructure-FreeAutonomous Driving
CustomizableCargo Space*
Easy Operation via Control System
Slope Navigation &E/V Integration Support*
Conversational AIIntegration Available*
Hardware-FreeCustomization
Select a robot to view details.
NarGo60
A Versatile 60 kg Robot for Buildings and Logistics Facilities
Key Features
NarGo60 enables autonomous navigation in large and complex environments without additional infrastructure.
It offers customizable cargo space, adapts flexibly to changing environments, and supports integration with elevators and automatic doors.
Customization
Component Names
Obstacle Detection Range
The robot continuously detects obstacles while driving.
It is equipped with sensors dedicated to obstacle detection.
3D LiDAR
Located on top of the robot, it perceives the environment in 3D.
2D LiDAR
Dual sensors positioned at opposite corners
provide 360° omnidirectional obstacle detection.
Bumper
Upon physical contact with an obstacle,
the bumper compresses inward to immediately halt navigation.
Detailed Specifications
- Basic Specifications
- Size (LWH)736 x 477 x 1,247 mm
- Max. Load Size (LWH)560 x 446 x 670 mm
- SpeedMax. 1.2 m/s
- Payload60 kg
- NetworkWi-Fi, LTE
- Operating Temperature5 ~ 40 ̊C
- Charging HoursUnder 3hours
- Operating HoursMax. 8hours
Charging Station
② Charging station
recognition marker
③ Charging port
NarGo100
A 100 kg Robot for Industrial Applications
Key Features
NarGo100 enables autonomous navigation in large and complex environments without additional infrastructure.
It offers customizable cargo space and adapts flexibly to changing environments.
Customization
Component Names
Obstacle Detection Range
The robot continuously detects obstacles while driving.
It is equipped with sensors dedicated to obstacle detection.
3D LiDAR
Located on top of the robot, it perceives the environment in 3D.
2D LiDAR
Dual sensors positioned at opposite corners
provide 360° omnidirectional obstacle detection.
Bumper
Upon physical contact with an obstacle,
the bumper compresses inward to immediately halt navigation.
Detailed Specifications
- Basic Specifications
- Size (LWH)916 x 667 x 1,446 mm
- Cargo Box Size (LWH)740 x 640 x 810 mm
- SpeedMax. 1.2 m/s
- Payload100 kg
- NetworkWi-Fi, LTE
- Operating Temperature5 ~ 40 ̊C
- Charging HoursUnder 3hours
- Operating HoursMax. 8hours
Charging Station
② Charging station
recognition marker
③ Charging port
NarGo500FT
A Pallet-Compatible Robot for Factory Automation
Key Features
NarGo500FT utilizes a forklift-style loading and unloading system, enabling seamless deployment in factory environments.
It supports integration with customer systems and adapts flexibly to a wide range of pallet types.
Forklift Type
① Pallet sensor
② Fork
Component Names
Obstacle Detection Range
The robot continuously detects obstacles while driving.
It is equipped with sensors dedicated to obstacle detection.
3D LiDAR
Located on top of the robot, it perceives the environment in 3D.
2D LiDAR
Dual sensors positioned at opposite corners
provide 360° omnidirectional obstacle detection.
Bumper
Upon physical contact with an obstacle,
the bumper compresses inward to immediately halt navigation.
Detailed Specifications
- Basic Specifications
- Size (LWH)1,200 x 930 x 1,330 mm
- Applicable Pallet Size (LWH)1,100 x 740 x 140 mm
- SpeedMax. 1.0 m/s
- Payload500 kg
- NetworkWi-Fi, LTE
- Operating Temperature5 ~ 40 ̊C
- Charging Hours Under 2hours
- Operating HoursMax. 4hours
- Pallet Rack
- Size (LWH)750 x 1,200 x 550 mm
- PayloadMax. 600 kg
Charging Station
① Status indicator
② Charging station recognition marker
③ Handle
④ Charging port
⑤ Trigger sensor
Pallet Rack
① End Stopper
② Check plate
③ Pallet guide
④ Main frame
⑤, ⑥ Cushion
⑦ Leveling Foot
NarGoD40
A Delivery Robot for Multi-Floor Buildings
Key Features
NarGoD40 autonomously delivers items across multiple floors in high-rise buildings.
It operates elevators independently and is designed for user convenience. The integrated display enables intuitive operation and interaction.

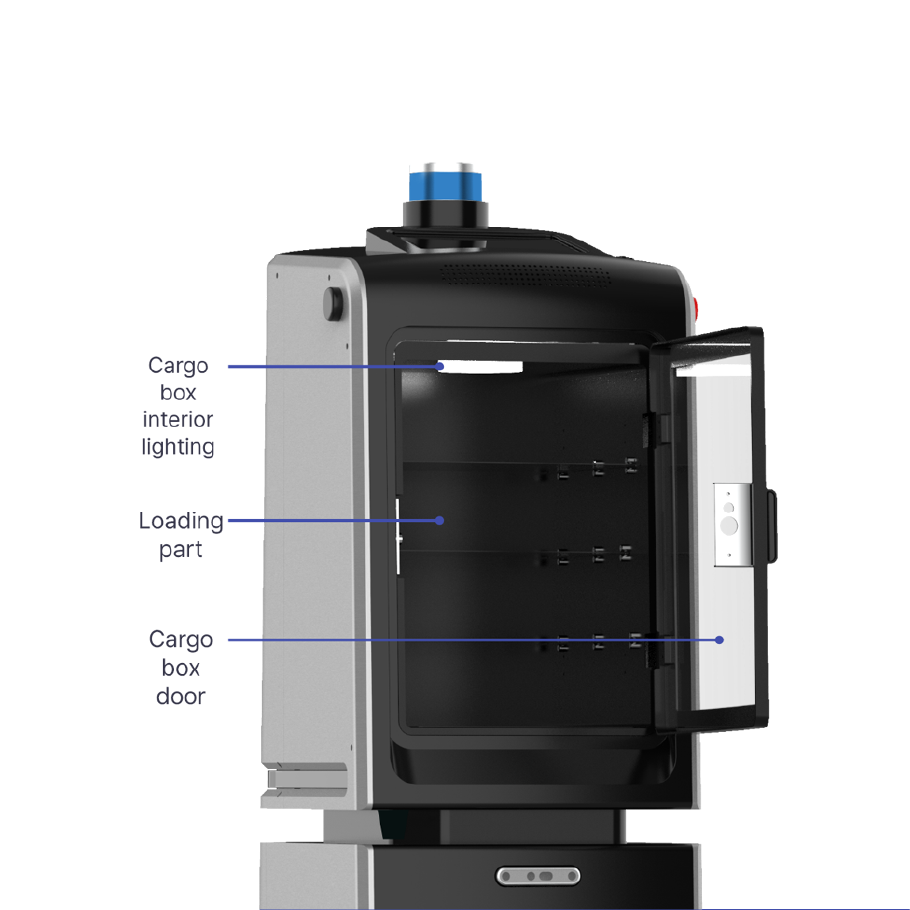

Cargo Box
The robot's cargo section supports shelf installation at 3 different heights.
(120, 240, 360 mm from the bottom)
The robot's cargo box provides various functions:
① Fully automatic lock and unlock
② Open/closed status indication
Component Names
Detailed Specifications
- Basic Specifications
- Size (LWH)560 x 540 x 1,220 mm
- Cargo Box Size (LWH)340 x 308 x 410 mm
- SpeedMax. 1.0 m/s
- Payload30 kg
- Operating HumidityUnder relative humidity 80 %
- NetworkWi-Fi, LTE
- Operating Illumination100 ~ 1000 lx
- Operating Temperature0 ~ 40 ̊C
- Charging HoursUnder 3hours
- Operating HoursMax. 8hours
- Battery & Motion Performance
- Battery29.4 V, 54 Ah
- Charging MethodAutomatic charge / Manual charge
- Step / Gap± 20 mm / 35 mm
- Max. Gradability5 ˚
- Safety Features
- Sensors
- 3D LiDAR (Environmental information recognition)
- 2D LiDAR (360 ˚ omnidirectional obstacle detection)
- Bumper (Collision detection)
